RD6006 All-in-One Adjustable DC Power Supply: How It Differs from a Standard Bench PSU
On paper, many adjustable DC power supplies look similar. They all mention voltage, current, power, and constant-voltage / constant-current operation. For experienced users, that is rarely enough. What really separates one unit from another is bench workflow: how quickly it is ready, how easily it repeats a known setup, how clearly it handles protection, and whether software control is genuinely useful.

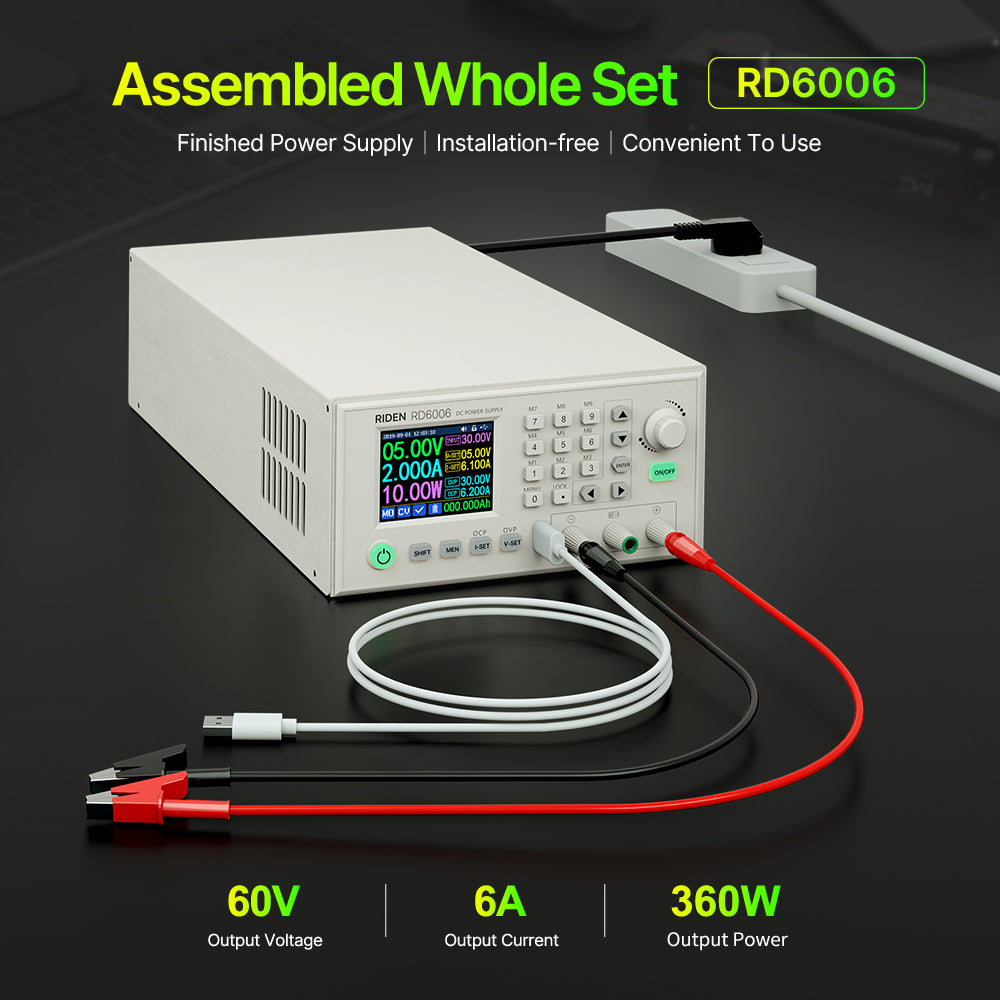

That is how we look at the RD6006 assembled unit. We do not treat it as a bare programmable module, and we do not position it as just another entry-level bench PSU. The RD6006 is a finished 60V / 6A / 360W adjustable DC power supply in an all-in-one enclosure, sized at about 326 × 172 × 86 mm. The interesting part is not a single headline spec. The interesting part is how the whole system works in daily use.
1) The first real difference is that the RD6006 is a complete system, not a half-finished project
The most obvious difference is also the one that saves the most time. The RD6006 assembled unit is not a bare control board that still needs a case, an input PSU, cable selection, and extra verification. It is already a finished power supply system.

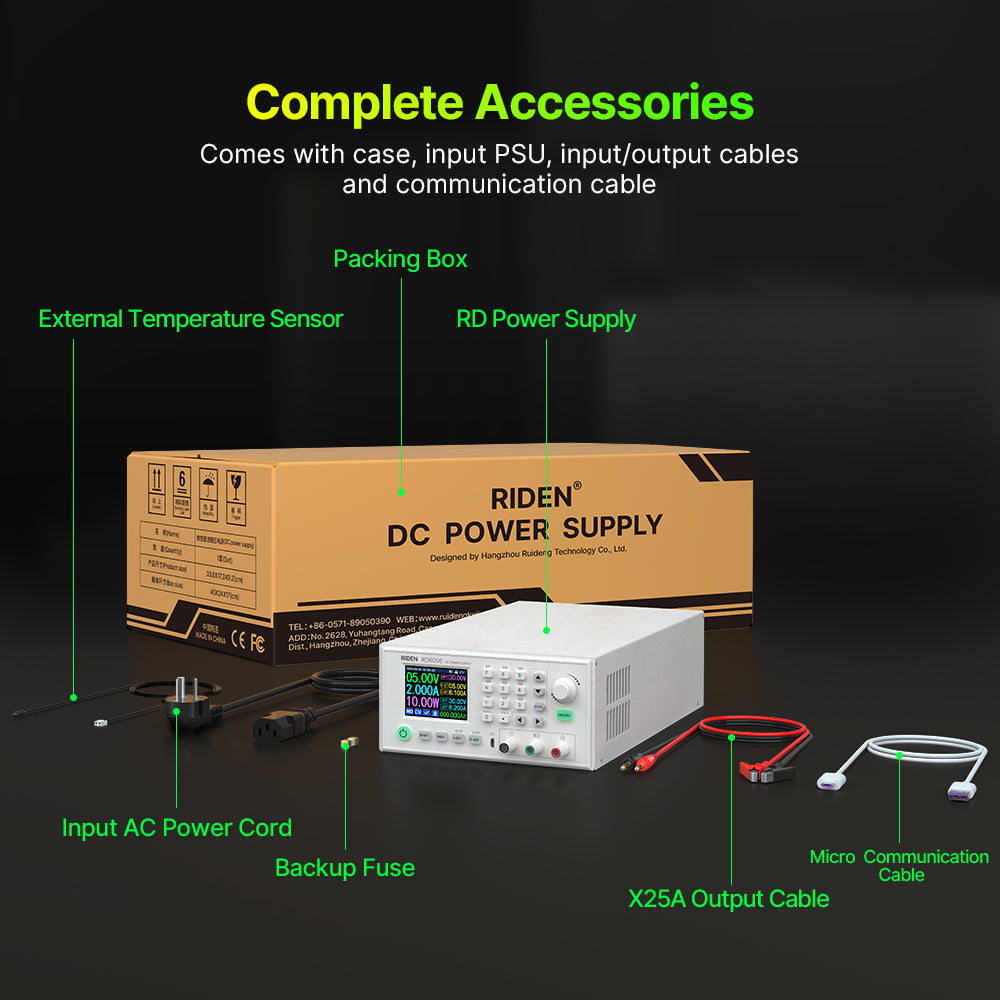

The package includes the main power supply, the input PSU, AC power cord, X25A output cable, micro communication cable, external temperature sensor, and a spare fuse. That changes the nature of the product. Instead of buying a module and then spending time turning it into a usable bench instrument, you start with a usable bench instrument.
For professional users, that matters for two reasons. First, deployment is faster. Second, bench-to-bench variability is lower. Once people start mixing different housings, power sources, wiring methods, and cable quality, two units built around the same core module can behave very differently in real work. The RD6006 assembled version reduces that uncertainty.
Compared with a standard adjustable bench power supply, the RD6006 sits in a useful middle ground. It is more complete than a DIY programmable module, and more workflow-oriented than a basic fixed-interface bench PSU.
2) The RD6006 is built around repeatable bench work, not just manual adjustment
A power supply’s front panel says a lot about what kind of work it expects. The RD6006 uses a combination of silicone buttons, a rotary encoder, and direct-entry numeric keys. That is a better match for repetitive technical work than a design that depends on one knob and several layers of menus.
We see that most clearly in preset storage and recall. The RD6006 can store and call back parameter groups directly from the front panel. In practical use, [MENU] + [0–9] stores a group, and [SHIFT] + [0–9] recalls it.
That is not just a convenience feature. It changes how the unit behaves in a real lab or repair workflow. A technician can move back to a known-safe voltage and current pair without stepping through every setting again. An engineer can switch between repeat test states much faster. A small service bench can standardize recurring tasks without constant manual re-entry.
Many ordinary bench power supplies technically offer memory, but the implementation is often slow or buried. The RD6006 makes preset recall part of the normal workflow, which is exactly where it should be.
3) The display system is more flexible than what most standard bench PSUs offer
Most basic power supplies force the user into one display layout whether the task is quick monitoring, close adjustment, or trend observation. The RD6006 does not work that way.
It offers Classic Style, Detailed Style, and Curve Style display modes. It also supports 7-segment / nixie-style display options, a redesigned settings interface, multiple languages including Chinese, English, French, German, and Russian, and custom color configuration with a wide set of selectable colors.
We do not see that as cosmetic fluff. On a crowded bench, readability matters. Large values are easier to read at a glance. A denser layout is better when more parameters matter at the same time. A curve-style view is useful when you want a quick sense of change rather than a single frozen number. Custom colors are also more practical than they sound, especially in shared labs, mixed lighting conditions, or benches where people spend long hours reading the same instrument.
The settings system is also more structured than what we usually see on low-cost supplies. Function classification and cleaner menu hierarchy make everyday operation less frustrating.
That said, it is important to stay technical here: a built-in curve view is still not a substitute for an oscilloscope or a serious data acquisition system. For transient analysis, those tools still matter. But for instrument-level visibility, the RD6006 display system is much more useful than a simple numeric screen.
4) Protection on the RD6006 is not just a checkbox feature
A lot of low-cost bench power supplies stop at “CV/CC” and call it a day. That is not enough for professional work. What matters is how the instrument behaves when something goes wrong.

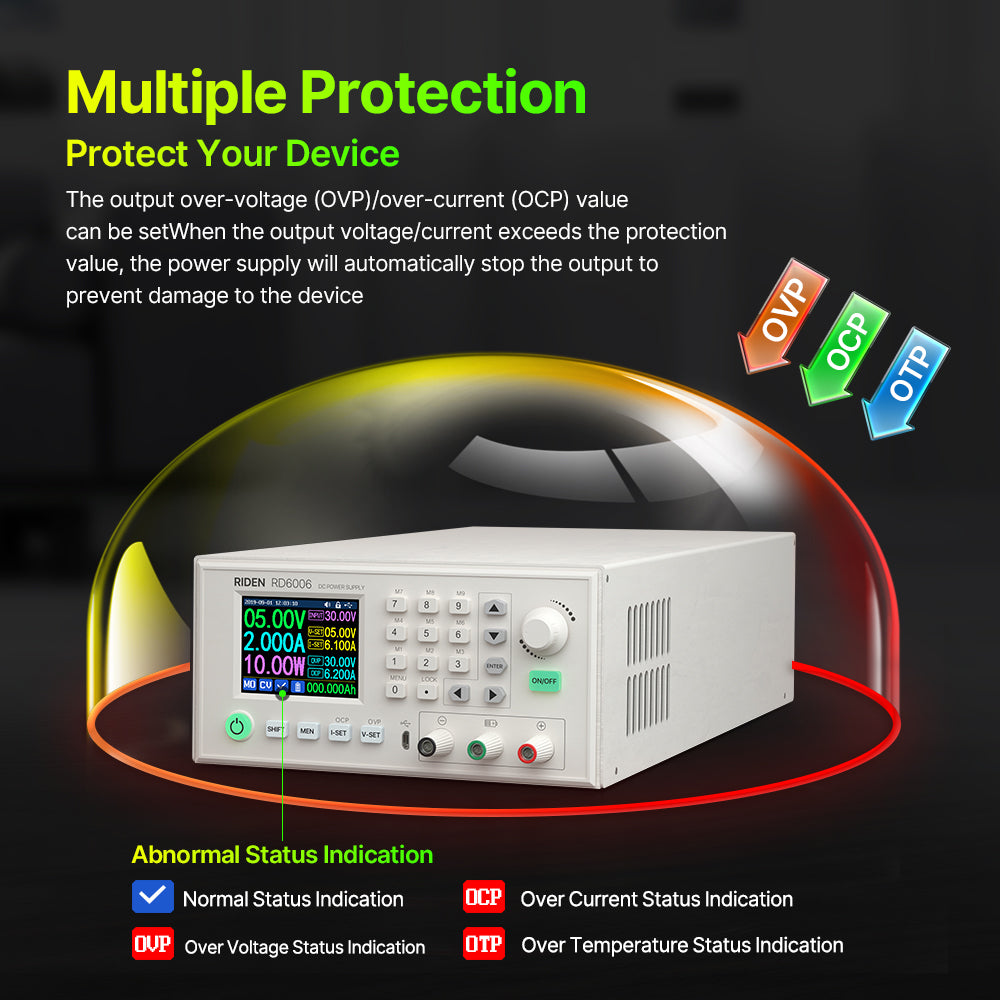

The RD6006 allows the user to set OVP and OCP, and it provides clear abnormal-status indication for normal output, over-current, over-voltage, and over-temperature conditions. It also makes a more important distinction that many ordinary supplies never explain properly: short-circuit behavior depends on the relationship between OCP and I-SET.
That point deserves attention. If OCP is set lower than I-SET, a short circuit can cause the output to shut down for protection. If OCP is set higher than I-SET, a short can drive the unit into constant-current mode instead. That behavior is useful for applications where controlled current matters, such as high-power LED work.
This is one of the most practical differences between the RD6006 and a standard adjustable DC power supply. The protection logic is not hidden behind vague language. It gives the user more control over how the supply reacts under fault conditions, and that makes the instrument easier to integrate into real test workflows.
5) Battery charging is treated as a serious function, with the right caution attached
Many bench power supplies can be used for battery charging in the loosest sense of the term. Set a voltage, limit the current, connect carefully, and rely on the operator to understand the chemistry and the risk. That is very different from treating battery charging as an intentional use case.
The RD6006 includes dedicated battery charging terminals and is clearly designed to support charging work across multiple battery types. That is a meaningful difference from ordinary bench supplies that merely happen to have adjustable output.
At the same time, we do not think this function should be discussed casually. The warning matters: non-professionals should not use the battery charging function because the risk of fire or explosion is real. That is exactly the right position. Battery charging is not a toy feature. It depends on chemistry, charge profile, cutoff behavior, temperature awareness, and operator judgment.
So the useful distinction is not simply “this power supply can charge batteries.” The more important point is that the RD6006 treats battery charging as a defined bench task while still respecting the safety boundary.
6) PC software, mobile control, and firmware upgrades make the RD6006 feel more like a platform
Another place where the RD6006 separates itself from many ordinary bench power supplies is software integration.

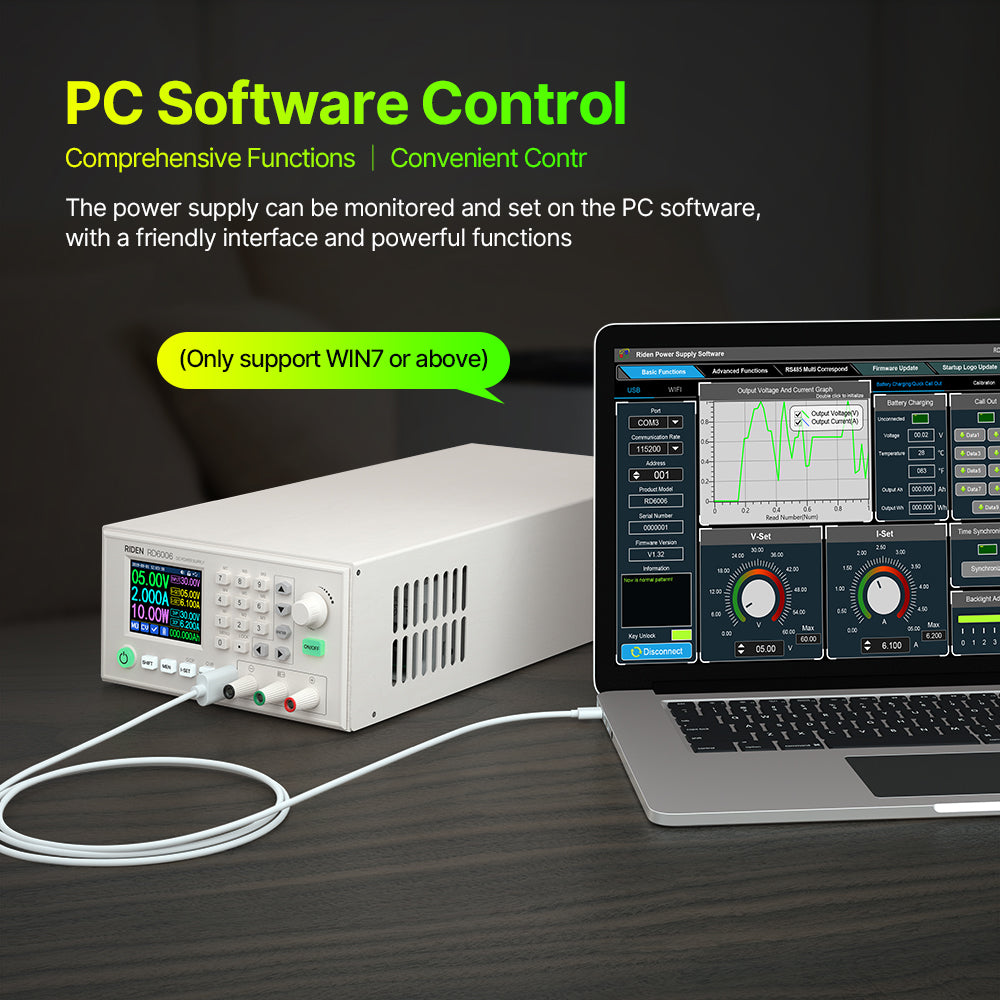

The unit supports PC software control, allowing users to monitor and set parameters from a computer. That is valuable when the power supply is part of a longer bench procedure, when the operator wants a larger interface, or when repeated tuning is easier from a PC than from the front panel alone. The software environment is intended for Windows 7 or above, which should be checked in advance in any professional deployment.
The RD6006 also supports mobile app control on Android and iOS, but here the boundary matters: app control requires an optional Wi-Fi board. It uses LAN communication only, supports 2.4 GHz Wi-Fi rather than 5 GHz, and the front-panel buttons are locked during communication.
Those details are not small details. They define the real operating model. This is not a generic cloud gadget pretending to be lab equipment. It is closer to a locally controlled bench instrument. For some users, that is an advantage because local communication is predictable and does not depend on external services. For other users, it is a limitation because it does not imply broad remote access or simultaneous panel-and-app control.
The firmware upgrade path matters for another reason: it gives the RD6006 a longer useful life. A conventional low-cost bench PSU is often functionally frozen on day one. The RD6006 can evolve. Features can be refined, software behavior can improve, and the overall user experience can become more mature over time.
For teams, that also means firmware management should be taken seriously. Once a workflow is validated, it makes sense to control firmware versions across benches instead of updating ad hoc.
7) Where a standard bench power supply may still be the better fit
A balanced comparison is more useful than exaggerated sales language.
We do not present the RD6006 as the right answer for every buyer. If the work is extremely simple—one or two fixed voltages, little reconfiguration, no need for presets, no software, no battery-related work—then a standard bench PSU may still be the more economical choice.
The same applies in environments where output performance must be judged primarily by measured noise, transient response, calibration practice, or formal compliance requirements. In those situations, interface flexibility is not the deciding factor. Verified instrument performance is.
There is also a human factor that matters. Some teams want a power supply that behaves exactly the same way every day, with no software layer, no optional networking, and no firmware decision-making. That preference is completely reasonable.
So the RD6006 should not be described as “better than everything else.” A more accurate description is this: it offers a richer operating model than a standard adjustable DC power supply, and that operating model becomes valuable when the user actually needs it.
8) Who the RD6006 is best suited for
The RD6006 assembled unit makes the most sense for users who need more than basic CV/CC output but do not want to build a bench supply system from separate parts.
That includes electronics repair benches, R&D workbenches, small test stations, education labs, field service setups, LED and driver testing, and battery-related work handled by experienced users. It is especially useful where preset recall, compact integration, configurable protection, software visibility, and firmware upgradeability all make a real difference.
In other words, the RD6006 is strongest not as a spec-sheet trophy, but as a tool for people who actually live with their bench equipment day after day.
Final takeaway
What makes the RD6006 assembled unit different from an ordinary bench power supply is not one dramatic feature. It is the combination of a ready-to-use hardware platform, faster bench workflow, flexible display options, more transparent protection behavior, battery-oriented functionality, PC software control, optional local app control, and firmware-based evolution.
That combination puts it in a very practical position: more complete than a bare programmable module, more capable than a basic low-cost bench PSU, and still compact enough to fit naturally into a crowded workbench.
For professional users, that is usually where the real buying decision is made.
RIDEN RD6006 Bench DC Power Supply
30-Day Money Back Guarantee
Your Common Questions, Answered
Is the RD6006 assembled unit ready to use out of the box?
Is the RD6006 assembled unit ready to use out of the box?
Yes. The RD6006 assembled unit is a finished power supply system rather than a bare module. It comes with the main unit, input PSU, AC power cord, X25A output cable, micro communication cable, external temperature sensor, and a spare fuse.
Can the RD6006 save and recall common settings?
Can the RD6006 save and recall common settings?
Yes. The RD6006 supports front-panel storage and recall of parameter groups. That makes it useful for repeated tests, repair routines, and standard bench setups.
Can the RD6006 be used for battery charging?
Can the RD6006 be used for battery charging?
Yes, the RD6006 includes dedicated charging terminals and supports battery-oriented work. That said, battery charging should only be handled by users who understand the chemistry, safety limits, and risk involved.
Does the RD6006 support software and app control?
Does the RD6006 support software and app control?
Yes. The RD6006 supports PC software control. Mobile app control is also available, but it requires an optional Wi-Fi board and works over local LAN communication.
Why do firmware upgrades matter on a bench power supply?
Why do firmware upgrades matter on a bench power supply?
Firmware upgrades matter because they can improve functions, refine behavior, and extend the useful life of the instrument. In professional use, they should also be managed carefully once a workflow has been validated.
